Coding Yaml Home Assistant

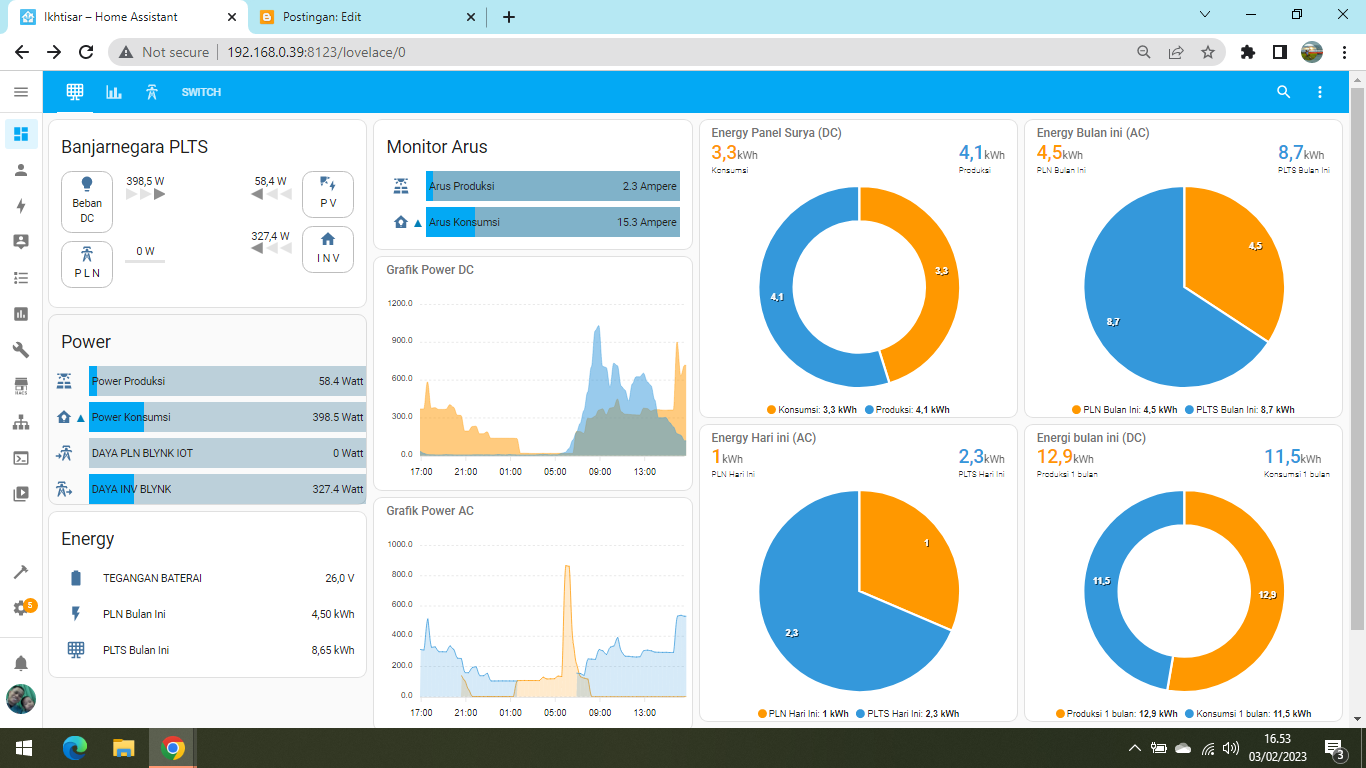

berikut ini adalah, yaml dashboard home assistant milik saya. jika ada yang berminat silahkan di copy

dan dipakai

=========================================================================

1. pojok kiri atas power distribution card. download dulu di HACS (home assistant comunity store)

=========================================================================

type: custom:power-distribution-card

title: Banjarnegara PLTS

entities:

  - decimals: 2

    display_abs: true

    name: Beban DC

    unit_of_display: W

    consumer: true

    icon: mdi:lightbulb

    entity: sensor.daya_konsumsi

    preset: consumer

    attribute: ''

  - decimals: 2

    display_abs: true

    name: P V

    unit_of_display: W

    icon: mdi:solar-power

    producer: true

    entity: sensor.daya_panel_surya

    preset: solar

    attribute: ''

  - decimals: 2

    display_abs: true

    name: P L N

    unit_of_display: W

    icon: mdi:transmission-tower

    entity: sensor.daya_pln_blynk_iot

    preset: grid

    attribute: ''

  - decimals: 2

    display_abs: true

    name: I N V

    unit_of_display: W

    consumer: true

    icon: mdi:home

    entity: sensor.daya_inv_blynk

    preset: consumer

    attribute: ''

center:

  type: none

  content:

    - preset: autarky

      name: 'Baterai '

      entity: sensor.battery_bluecarbon

      invert_value: false

      bar_bg_color: ''

      bar_color: Blue

animation: flash

=========================================================================

copy yaml diatas dan ganti sensor sesuai sensor yang anda miliki

========================================================================= dibawahnya ada bar card

=======================================================================

type: custom:bar-card

entities:

  - entity: sensor.daya_panel_surya

    name: Power Produksi

    icon: mdi:solar-power-variant

  - entity: sensor.daya_konsumsi

    name: Power Konsumsi

    icon: mdi:home-lightbulb

  - entity: sensor.daya_pln_blynk_iot

    icon: mdi:transmission-tower-import

  - entity: sensor.daya_inv_blynk

    icon: mdi:transmission-tower-export

unit_of_measurement: Watt

max: '2000'

title: Power

columns: '1'

icon: hass:weather-lightning

entity_row: true

animation:

  speed: '1'

severity:

  - {}

=========================================================================

apexchart type :area

=========================================================================

type: custom:apexcharts-card

apex_config:

  legend:

    show: false

header:

  show: true

  title: Grafik Power AC

  show_states: false

  colorize_states: true

all_series_config:

  stroke_width: 1

  opacity: 0.2

  type: area

  curve: smooth

  group_by:

    func: max

    duration: 20min

series:

  - entity: sensor.sonoff_1000ae81a4_power

    name: Power PLN

  - entity: sensor.sonoff_1000a93dc5_power

    name: Power Inverter

=========================================================================

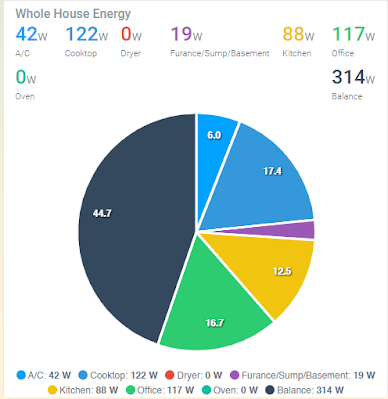

selanjutnya custom apexchart. ini bisa berbentuk dalam beberapa tampilan  "line", "scatter", "pie", "donut", "radialBar"

chart_type: donut

chart_type: pie

chart_type: line

chart_type: area

=========================================================================

type: custom:apexcharts-card

apex_config:

  legend:

    show: false

header:

  show: true

  title: Grafik Power DC

  show_states: false

  colorize_states: true

all_series_config:

  stroke_width: 0.5

  opacity: 0.5

  type: area

  curve: smooth

  group_by:

    func: max

    duration: 20min

series:

  - entity: sensor.daya_konsumsi

    name: Power Konsumsi

  - entity: sensor.daya_panel_surya

    name: Power Produksi

=========================================================================

=========================================================================

type: custom:apexcharts-card

header:

  show: true

  title: Energy Hari ini (AC)

  show_states: true

  colorize_states: true

apex_config:

  plotOptions:

    pie:

      donut:

        total:

          show: true

          showAlways: true

chart_type: pie

series:

  - entity: sensor.daily_energy_pln

    name: PLN Hari Ini

  - entity: sensor.daily_energy_plts

    name: PLTS Hari Ini

=========================================================================

oke itu semua sabagai contoh sebelumnya harus di install HACS home assistant comunity store. cara installnya seperti ini

1. menuju Add-on store
2. Install satu dari SSH add-ons (rekan-rekan perlu menghidupkan Advanced mode di user profile )
3. chek documentasi SSH add-on
4. jalankan the SSH add-on
5. hubungkan to the SSH add-on
6. untuk menginstall HACS jalankan script ini
7. ============================================================wget -O - https://get.hacs.xyz | bash -
8. ============================================================  setelah HACS terinstall masuk ke pengaturan home assistant dan menuju ke integrasi tambahkan HACS
9.




cheklist semuanya

copy code yang ada di layar

login ke github bisa login dengan gmail

masukan kode dari HACS tadi

klik authorize

oke. selesai
